Refurbished Leapfrog Creatr HS

A-01-74

Contact us for information and availability.
Leapfrog Creatr HS - Project frame

A-01-74 DEMO

Contact us for information and availability.
Leapfrog Creatr HS XL - Project frame

A-01-75

Contact us for information and availability.

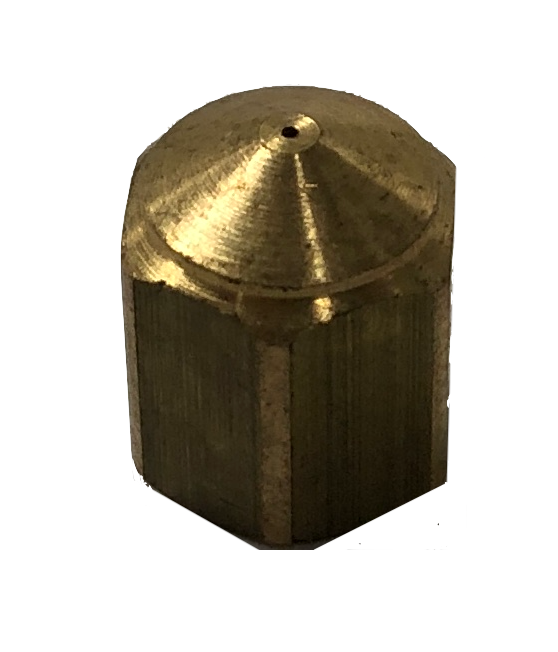

Nozzle 0.35mm Brass for hot end


3D-MCH-150520-P1-R4

Creatr (XL)

Creatr HS (XL)

Xeed


Assembly Instructions: Click Here

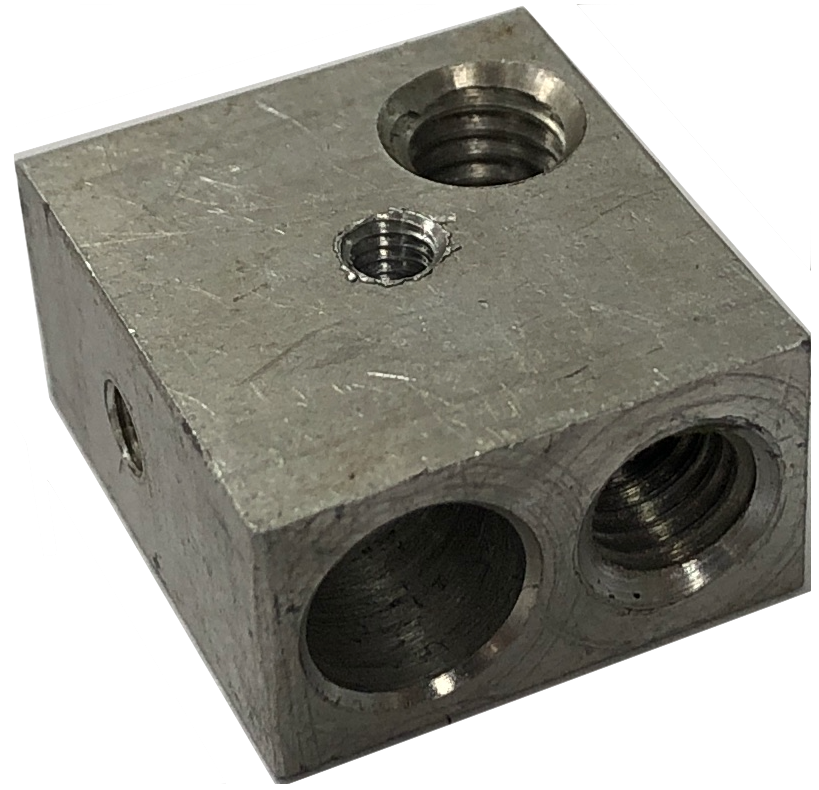

Heater block Aluminium for hot end


002-165-02


Creatr (XL)

Creatr HS (XL)

Xeed


Assembly Instructions: Click Here

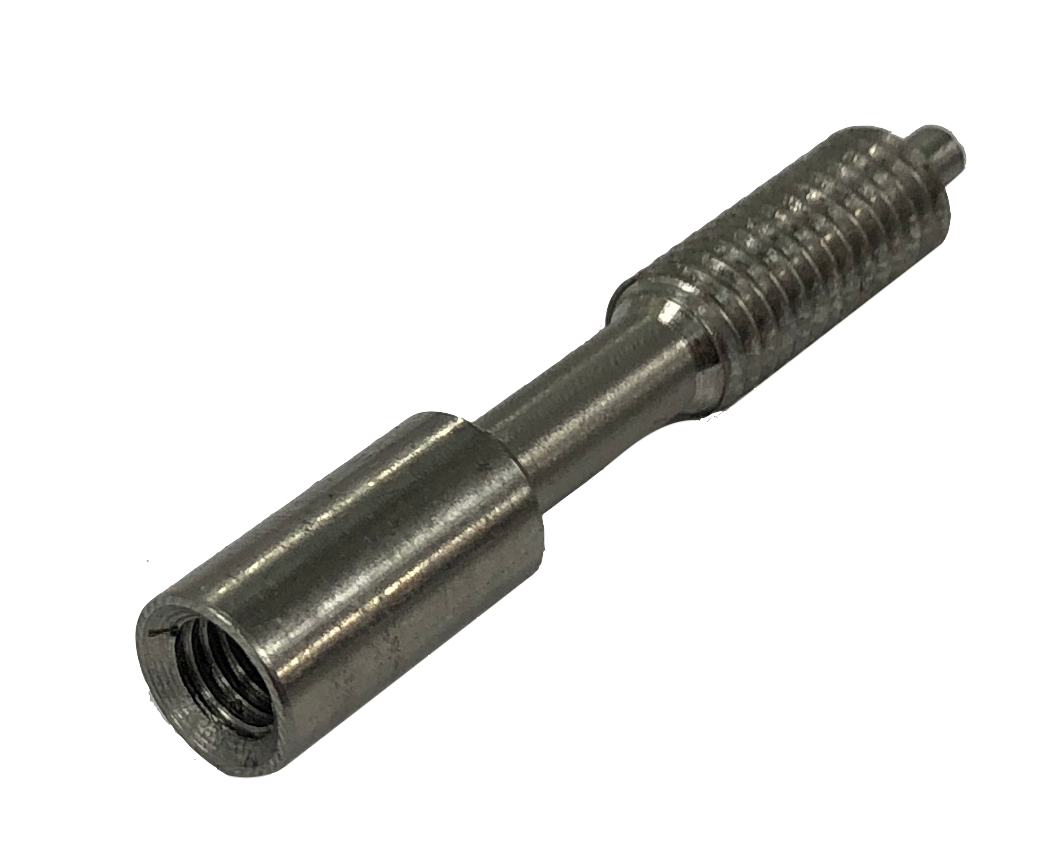

Heatbreak Stainless Steel for hot end


002-165-01V3


Creatr (XL)

Creatr HS (XL)

Xeed


Assembly Instructions: Click Here

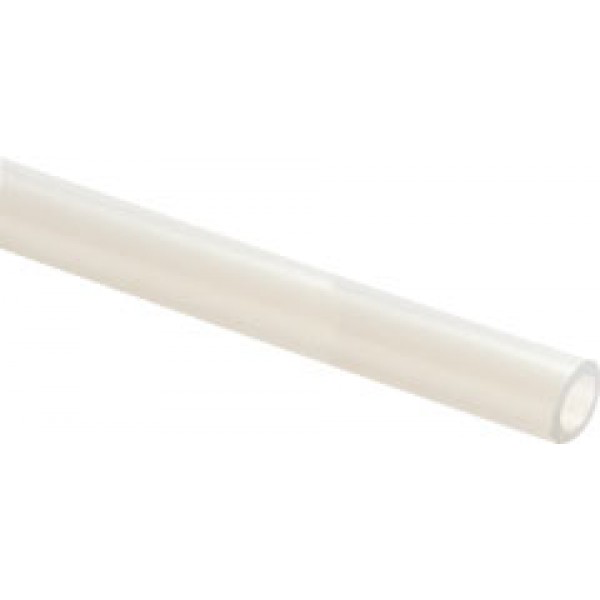

PTFE tube 2-3mm


C-01-1086

Per meter.


Inserted in (Heatbreak Stainless Steel) ± 16mm. Essential part of hot-end.


Assembly Instructions: Click Here

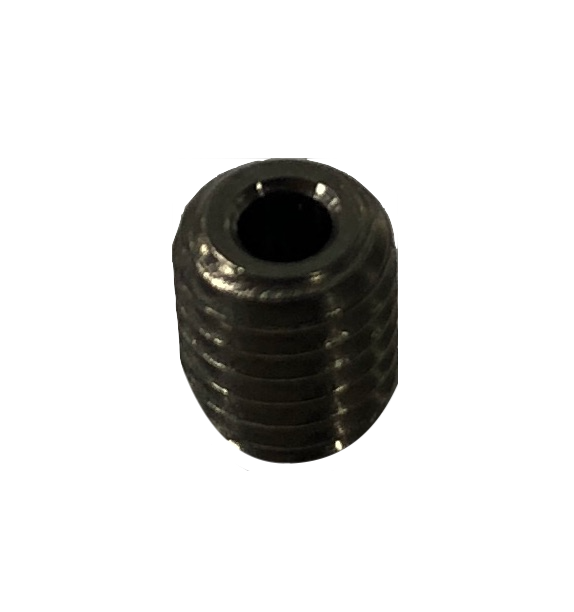

Setscrew M5x6mm /w hole for hot end


3D-MCH-150520-P3-R1


Creatr (XL)

Creatr HS (XL)

Xeed


Assembly Instructions: Click Here
HS Thermistor Assembly Creatr HS

SP-01-1019

Temperature Sensor hot end Creatr HS and Xeed
NTC Thermistor -
EPCOS 100k (4.7k pullup)

Assembly Instructions: Click Here

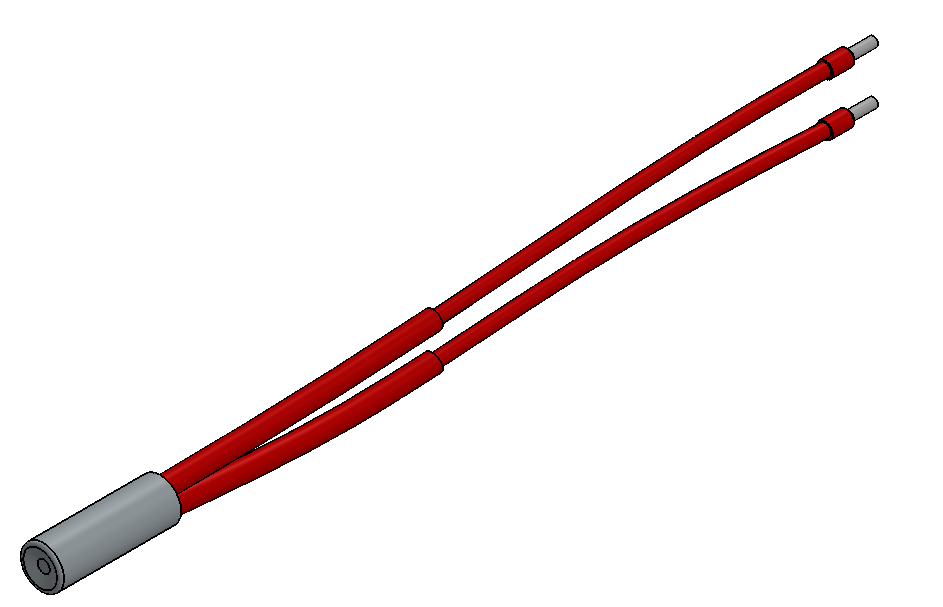

HS Heater Cartridge Assembly

SP-01-1020

40W 24V heater for Creatr Hot end

Assembly Instructions: Click Here
Electronics board - LMC Creatr HS

B-01-1207

Motorcontrolboard (LMC)

NEMA 17 stepper motor 48mm

C-01-1046

Extruder motor (2), X-motor (1), Y-motor (2)
SM42HT47C-1684

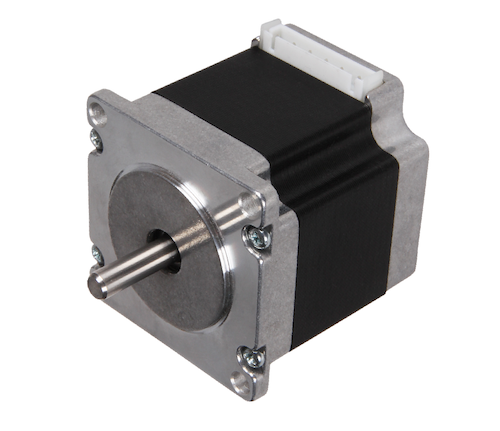

NEMA 23 stepper motor


C-01-1045


Z-motor on Creatr + Creatr HS

Model: SM57HT56-2804AFC


Motor comes without cable. NEMA 23 Motor cable can be ordered separately



NEMA 23 Motor cable

SP-04-1017

Leapfrog Creatr + Creatr HS: Z-motor cable

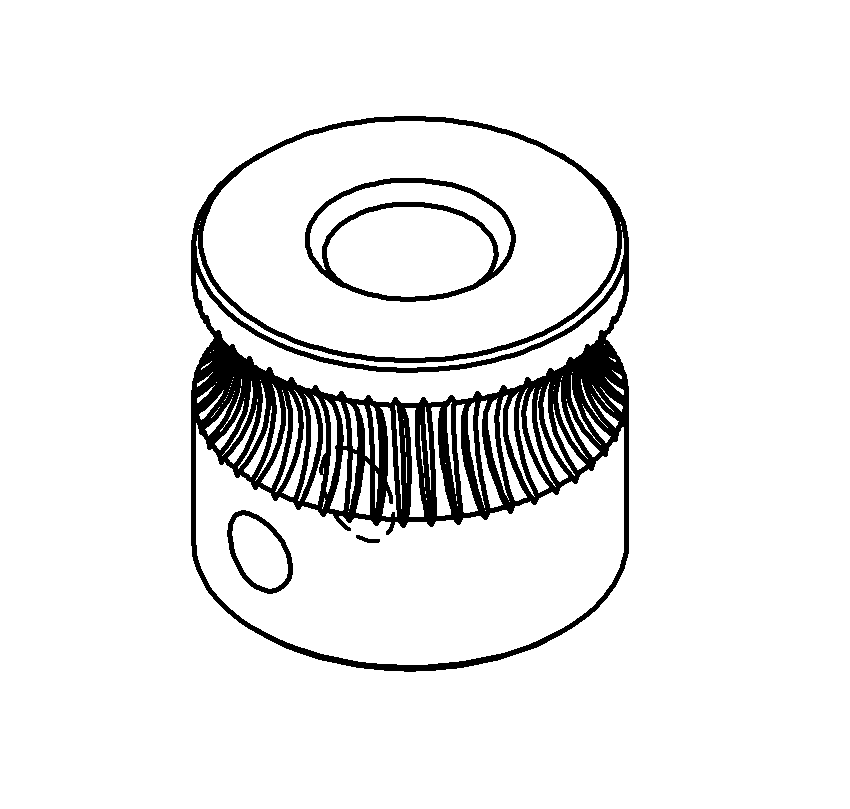

Extruder Drive Gear


C-01-1098


Extruder drive gear / pinch wheel that moves the filament

HS Printhead Axial Fan

SP-01-1018

40x40 24V Heatsink fan
15cm length of wires

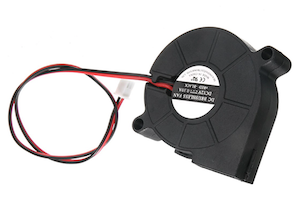

HS Printhead Radial Fan

SP-01-1015

50x50 24V Part cooling fan

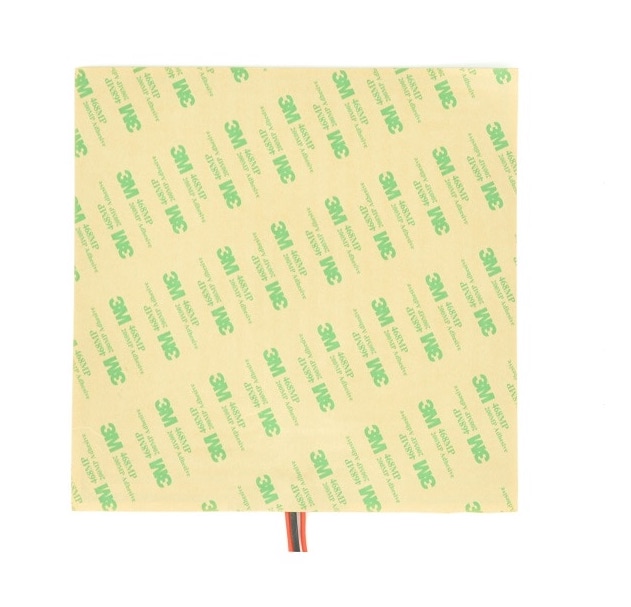

Kapton Heater (200W)

C-01-1230

270x270mm 24V. Does not include temperature sensor or glass print bed.
Temperature Sensor 100K (printbed)

C-01-1235

Temperature sensor for printbed.

Bolt
Ribbon Cable

C-01-1150

Cable to printhead

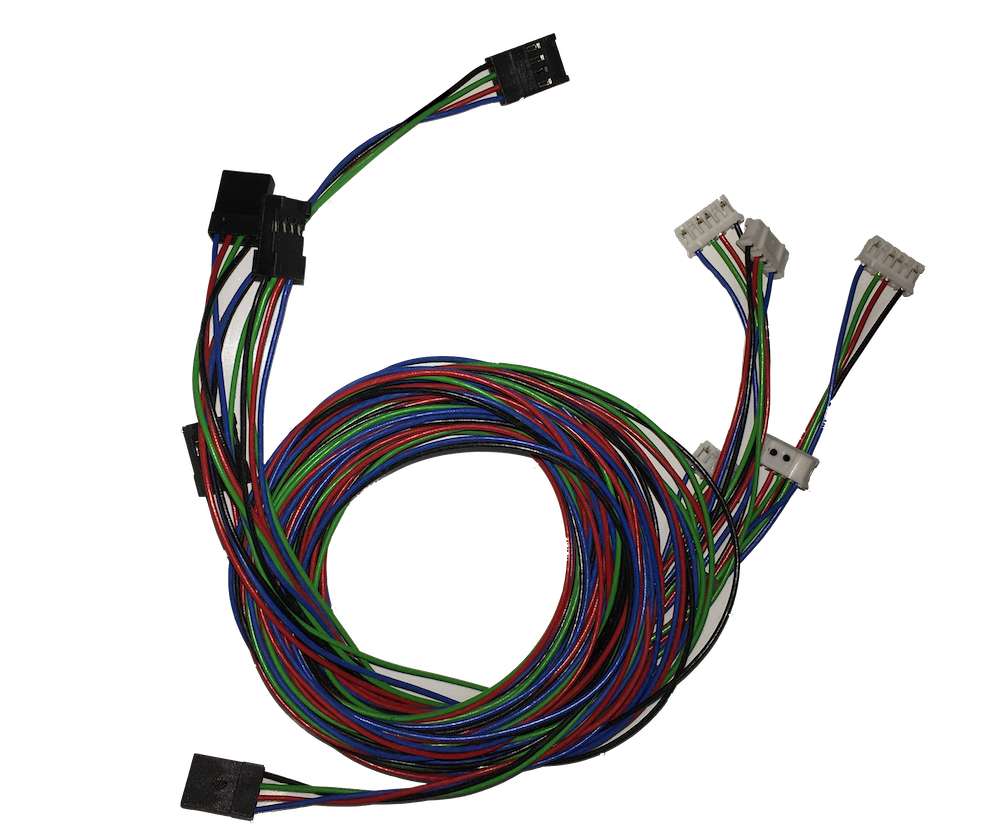

4 wire/cable 1400mm (single motor cable)

C-01-1241

Creatr HS motor wiring length map:
3 pcs - C-01-1241 - (1400mm) X motor, Right Y motor, Right E motor
1 pcs - C-01-1242 - (1000mm) Left Y motor
1 pcs - C-01-1243 - (1100mm) Left E motor
4 wire/cable 1000mm  (single motor cable)

C-01-1242

Creatr HS motor wiring length map:
3 pcs - C-01-1241 - (1400mm) X motor, Right Y motor, Right E motor
1 pcs - C-01-1242 - (1000mm) Left Y motor
1 pcs - C-01-1243 - (1100mm) Left E motor
4 wire/cable 1100mm  (single motor cable)

C-01-1243

Creatr HS motor wiring length map:
3 pcs - C-01-1241 - (1400mm) X motor, Right Y motor, Right E motor
1 pcs - C-01-1242 - (1000mm) Left Y motor
1 pcs - C-01-1243 - (1100mm) Left E motor

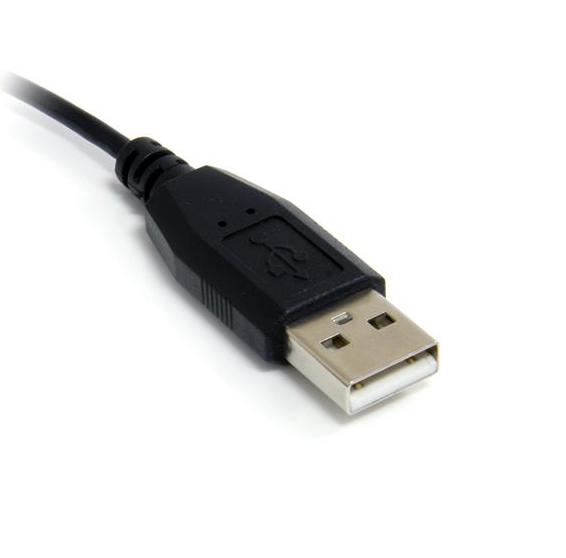

USB double FTDI cable

Sorry, we do not longer offer this item.

Manufacturer: FTID
Item nr: USB NMC-2.5M

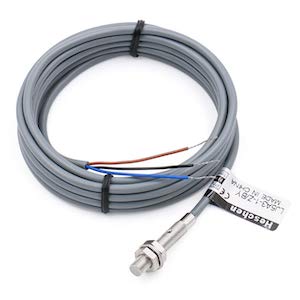

Inductive Proximity Sensor 24V / M5

Sorry, we do not longer offer this item

Manufacturer: Heschen
Item nr: LJ5A3-1-Z/BY
Timing Belt 3M-945-9mm (Y axis) Closed

C-01-1073

Y-axis timing belt

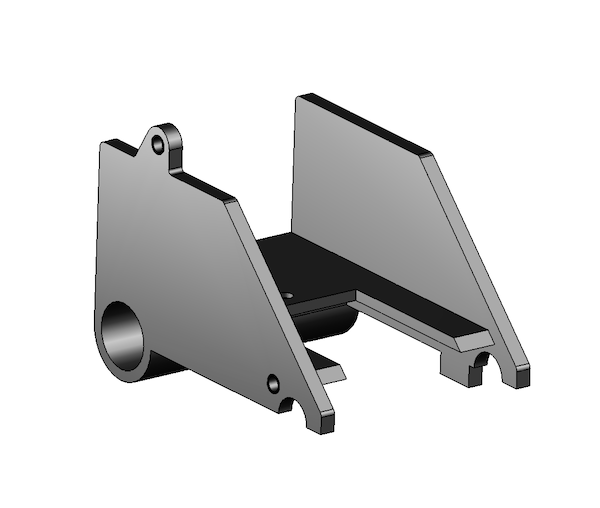

Y carriage plastic

C-01-1131

Y-axis bearing block

LM 8 UU bearing

C-01-1043

Creatr, Creatr HS X axis
LM 12 UU bearing

C-01-1042

Creatr, Creatr HS Y axis

16HTD3M-BF-05 Pulley HTD 5mm bore

C-01-1036

X-motor pulley
Y-motor pulley

Creatr HS
20HTD3M-BF-08 Pulley HTD 8mm bore

C-01-1038

Z-spindle pulley

Creatr HS

30HTD3M-BF-08 Pulley HTD

C-01-1039

Z-spindle pulley

Creatr HS

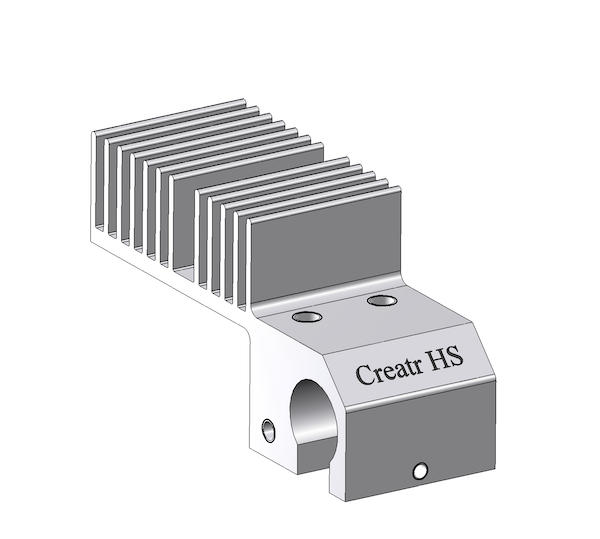

HS heat sink print head

C-01-1135

Aluminium Printhead heat sink. Mounting for two hot ends possible


Printhead PCB

B-01-1152

Head PCB that fits inside the Creatr HS (XL) printhead
Extruder plastic part

C-01-1134

Plastic bearing frame for printhead
Leapfrog Toolkit

A-13-002

Toolkit for 3D printer maintenance

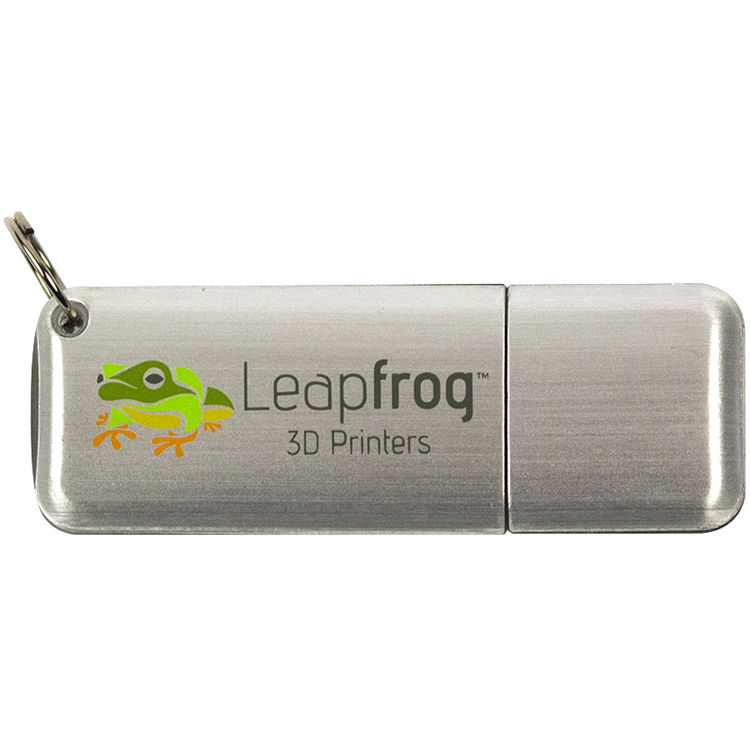

Leapfrog USB stick 2GB

A-13-016

USB Storage Device for transferring Print files

PTFE tube 2-4mm

C-01-1148
per meter

PTFE filament tube between drive-unit and printhead. 1m left + 1m right
PTFE tube 4-6mm

C-01-1101
per meter

PTFE filament tube between Filament spool and drive-unit. 1m left + 1m right

Push In Coupling 3D printer 4mm, M5

C-01-1113

Coupling used for 2mm-4mm PTFE tube
Push In Coupling 3D printer 6mm, M5

C-01-1145

Coupling used for 4mm-4mm PTFE tube
