This solution provides the information needed on how to upload Creatr HS software image on an SD card.



When would you use this? Rarely, you may experience a issue with your Stand Alone display. Inside your printer, you have roughly five electronics boards, one of which is the Olimex board located directly under the Motherboard. The Olimex mainly deals with providing you an image on your HS's Stand Alone display. There is an SD memory card located in a slot at the back of the Olimex board that contains a file used to make the display work properly.


Now, the Olimex board has 2 LED lights (green and red); the red indicates that the Olimex board is receiving power, and the green indicates that the SD card is being read. We have provided this link to help get you on your way to troubleshooting the issue if your display does not work and you find that the green LED light is NOT illuminated when the printer is powered up.



1. Locate and remove the SD card.

View complete electronics layout of the Creatr HS Series

2. Please check and see whether your Olimex board has a A13 or A20 chip.





3. Download the correct software


Software Image for A13:  A13_sd_2015_01_05
Software Image for A20: A20_sd_2015_07_24


4. Download and install Win32 Disk Imager

4A. Download and install Etcher from https://etcher.io/


5. Select image file and device

5A. Insert the original SD card provided with your Leapfrog Creatr HS printer into your computer. In case your computer does not have an SD card slot, you can also use an external card reader. You may need to use a micro SD adapter.

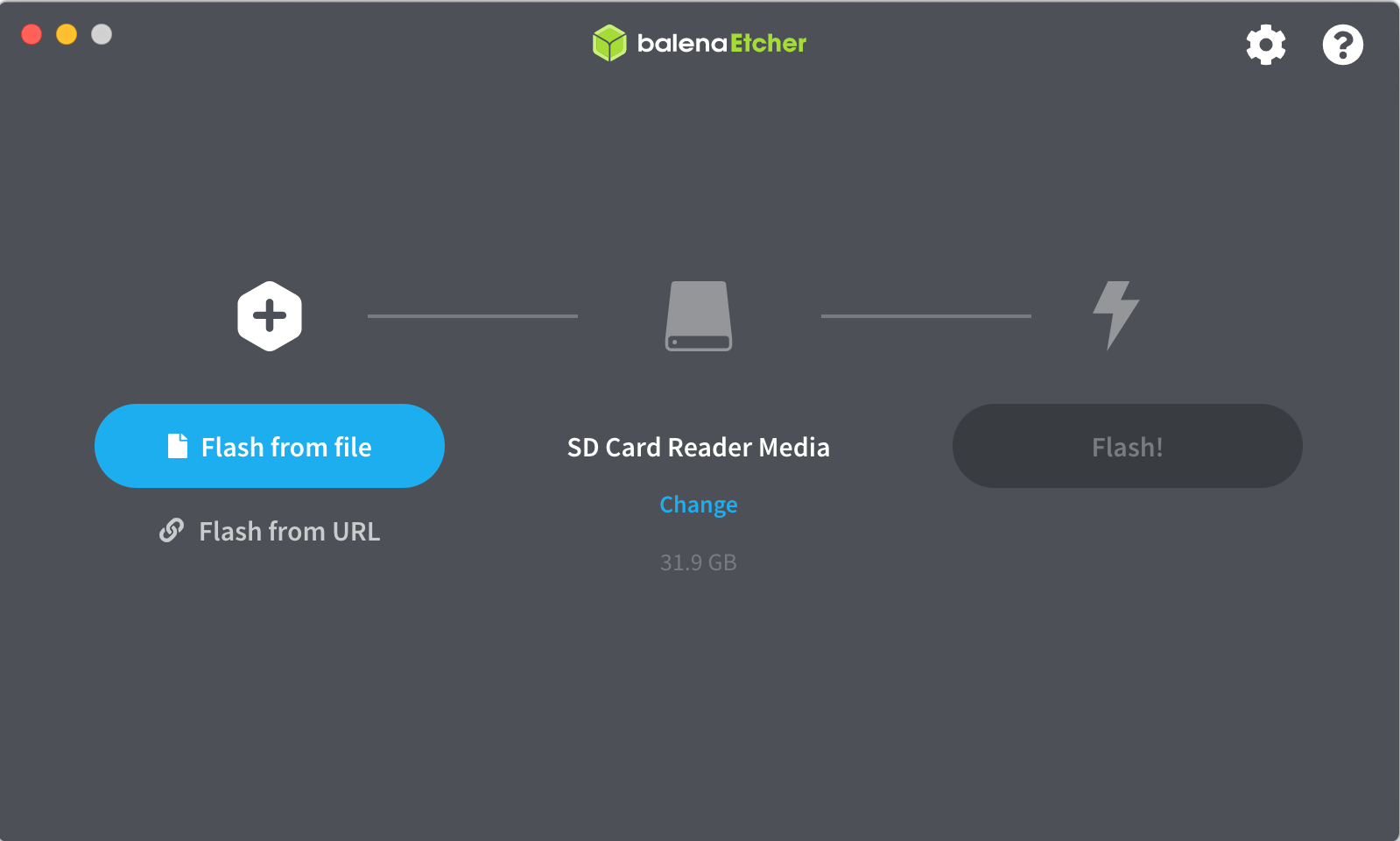

5B. Start Etcher and click on ‘Select image’. Locate the image file on your computer.

5C. When you have located the image file, your SD card should be automatically selected. If not, click on ‘Select drive’.

5D. Click on ‘Flash!’ to begin the process. Be sure not to remove the SD card until the process has completely finished.





6. Place SD Card back in printer.

After the process of previous step 5D has finished, you can remove the SD card and insert it back into the Olimex board.


7. Install the Latest Updates
Please download the file below and place it on a USB storage device. Then please this USB storage device in your Leapfrog Creatr HS.

Update file: Creatr_1.4.5c.jar


Install the latest update file. This can be done after the machine has booted up. Using the user-interface of your Leapfrog Creatr HS.


The final step will be to install the latest updates; they must be done in the following order:
